You can learn more about an aluminum extrusion factory by looking at their profiles under a light than by reading their corporate ISO certificates.
A faint, straight line running the length of a profile. A dark seam visible through the anodizing on a hollow section. A wall thickness that drifts from one end of the order to the other. These aren’t random production flukes. They are distinct signatures left by the extrusion die—revealing how it was designed, what steel it was cut from, how it was nitrided, and whether the factory bothered to maintain it properly.
Most buyers never see the die; they only see the end profile. But that profile tells you everything you need to know about the tooling discipline of the manufacturer behind it.
This guide breaks down the critical connection between die metallurgy, tool design, proactive maintenance, and the final quality of the aluminum profiles that come off the press. It is written specifically for procurement teams evaluating new suppliers and design engineers who want to understand why their tight tolerance callouts succeed or fail at the press level.
The Steel Matters More Than Most People Think
An extrusion die operates in a brutal mechanical environment. Aluminum heated to 500∘C is forced through a steel tool under thousands of tons of pressure, at velocities that can exceed 50 m/min. The die surface cycles rapidly between peak temperatures during extrusion and cooler drops between billets. Every single billet is a severe thermal shock. Every meter of profile is an aggressive abrasion test.
In these conditions, the baseline quality of your die steel directly dictates three critical outcomes:
- Dimensional stability across a long production run.
- Surface finish consistency.
- Tooling longevity before the die must be pulled for repair or out-of-tolerance scrapping.
While H13 is the baseline industry standard, “H13” is merely a chemical composition range—not a guaranteed quality grade.
Premium vs. Commodity Tool Steel
- Premium H13: Starts with electroslag remelted (ESR) steel, triple-forged to break up brittle carbide networks and eliminate micro-banding. Sulfur and phosphorus levels are strictly capped under 0.003%. Non-metallic inclusions are virtually non-existent and evenly distributed. Following vacuum heat treatment and triple tempering, the steel holds a rock-solid hardness of HRC 46–48 at room temperature and maintains structural integrity above HRC 42 at 520∘C.
- Commodity H13: Sourced from scrap-fed melts and minimally forged. Sulfur and phosphorus levels are often an order of magnitude higher. Carbides segregate into structural bands, causing the die hardness to drop noticeably once the press reaches full operating temperature. After just a few hundred billets, the bearing surfaces soften and wear. Profile dimensions drift, and the surface finish degrades.
| Tool Steel Grade | Structural Characteristics | Best Used For | Relative Tool Life |
|---|---|---|---|
| Commodity H13 | Scrap-fed, high impurities, prone to carbide segregation | Short runs, loose tolerances, non-critical industrial shapes | 1×(Baseline) |
| Premium ESR H13 | Electroslag remelted, triple-forged, ultra-low sulfur (<0.003%) | Standard architectural profiles, commercial electronics, medium runs | 3× to 5× |
| Advanced Premium (e.g., ASSAB 8407) | Modified H13 enriched with extra Molybdenum (Mo) & Vanadium (V) | Ultra-thin walls (<1.0 mm), complex hollow multi-cavity profiles, high-volume runs | 5× to 8× |
Why Wall Thickness Drifts During a Production Run
One of the most frustrating quality failures in aluminum procurement is wall thickness variation within a single batch. The profile measures flawlessly at the start of the run, but by the end of the shift, specific walls have drifted 0.2 mm or 0.3 mm over tolerance, causing mating assemblies to fail during final production.
This drift is directly tied to how a die behaves under sustained thermal and mechanical load through three distinct phenomena:
1. Elastic Deflection
Every billet loads the die with thousands of tons of force. The mandrel forming an internal hollow section flexes, and the structural bridge splitting the metal flow bends. While these deflections are minute—measured in hundredths of a millimeter—they are permanently imprinted onto the aluminum profile as it exits the bearing. A die cut from premium steel with high hot-yield strength resists this flexing, keeping dimensions stable under load.
2. Thermal Expansion and Softening
An extrusion die does not reach a stable thermal equilibrium until it has run multiple billets consecutively. As the tool heats up, it expands, opening or closing critical gaps. If the steel’s hot hardness is marginal, the die softens as it runs hotter, causing elastic deflections to amplify. This results in a distinct dimensional trend across a production run: the final billets are extruded through the tool at its hottest and softest state.
3. Progressive Bearing Wear
The bearing surface—the final land that shapes the profile before it exits the die—gradually wears down due to friction. As the metal land erodes, the profile dimensions open up. The rate of this wear depends on the steel’s hot hardness, the execution of the nitriding process, and the abrasiveness of the specific alloy. While Alloy 6063 is relatively forgiving, Alloy 6061 (with its higher magnesium and silicon content) wears down tool bearings significantly faster.
The Quality Divide: In a disciplined factory, the press operator measures wall thickness every 50 billets. If a dimensional trend appears, they proactively pull the die and swap it for a freshly nitrided backup tool. In an unmonitored factory, the drift goes unnoticed until the parts land on your incoming inspection dock.
Structural Surface Defects Traced to the Die
When you hold an aluminum profile up to the light and glance down its length, the visual flaws you see are almost always direct reflections of the tooling’s condition.
Die Lines
Die lines are continuous, hair-thin lines running longitudinally along the extrusion direction. They originate as minute irregularities on the die’s bearing surface—such as a proud carbide particle, a micro-crack from improper nitriding, or a wear groove worn by abrasive aluminum flow. As raw metal passes over that defect at high speeds, it is displaced (“ploughed”), leaving a continuous line on the aluminum.
Premium tool steels feature finely dispersed carbides, allowing the bearing surfaces to be polished to a mirror-like finish. Commodity steels with carbide banding retain a micro-texture even after extensive hand-polishing, transferring a subtle “orange peel” effect directly onto the finished profile.
Weld Lines and Seams
Every hollow aluminum profile contains weld lines; they are an inherent characteristic of the process. A hollow die must split the solid incoming aluminum flow around a steel bridge, then recombine the streams in a welding chamber immediately before the metal exits the die land. Where these separate streams fuse under immense pressure, a weld line is born.
- A High-Quality Weld Line is completely invisible to the naked eye on the as-extruded profile and vanishes entirely after chemical etching and anodizing. It requires a deep, highly pressurized welding chamber that allows the separate streams to fully interdiffuse.
- A Defective Weld Line manifests as a visible longitudinal seam that appears darker or slightly recessed. This happens when a welding chamber is designed too shallow or under-pressurized, meaning the aluminum streams fail to merge perfectly before exiting the tool. Furthermore, if surface oxides from the billet are not cleanly sheared off during the press cycle, they become trapped directly in the weld zone, permanently compromising both structural integrity and cosmetic finish.
Shadow Marks and Grain Variation
Shadow marks are faint, localized variations in surface reflectivity—appearing as lighter or darker bands—that become highly apparent after anodizing, particularly across wide, flat decorative faces.
This is caused by non-uniform grain recrystallization. As aluminum flows through a die, different zones of the cross-section experience varying levels of mechanical deformation. Areas squeezed through narrow bearing gaps or forced around sharp internal corners are worked much harder. During subsequent cooling, the grain size distribution across the profile becomes uneven. Because anodizing creates a semi-transparent oxide layer, it acts as a lens that exposes this underlying grain variance. Coarser grains reflect light differently than fine grains, creating an objectionable shadow effect.
Expert die designers eliminate this by carefully balancing bearing lengths across the entire cross-section. By tailoring the length of the land, they balance the metal flow velocities precisely, ensuring uniform deformation, uniform grain size, and a flawless cosmetic finish post-anodizing.
Nitriding: The Die’s Invisible Armor
Nitriding is a precision thermochemical surface treatment applied to the die after it is machined. Nitrogen atoms are diffused into the steel’s surface, creating a ultra-hard nitrided layer typically 0.1 to 0.2 mm deep. This boosts the surface hardness to an incredible HV 900–1100—roughly three times harder than the base tool steel.
A well-nitrided die achieves two critical things:
- Abrasion Resistance: It successfully resists the abrasive path of flowing aluminum, extending tool life.
- Anti-Pickup Defense: It prevents pickup—a defect where microscopic aluminum particles adhere to the steel bearing land, hardening and tearing the surface of all subsequent profiles.
However, nitriding requires strict process control. Over-nitriding creates an excessively thick, brittle “white layer” that easily micro-cracks under thermal cycling, creating catch-points where aluminum instantly adheres. Under-nitridingleaves the tool without enough surface hardness, leading to rapid bearing wear.

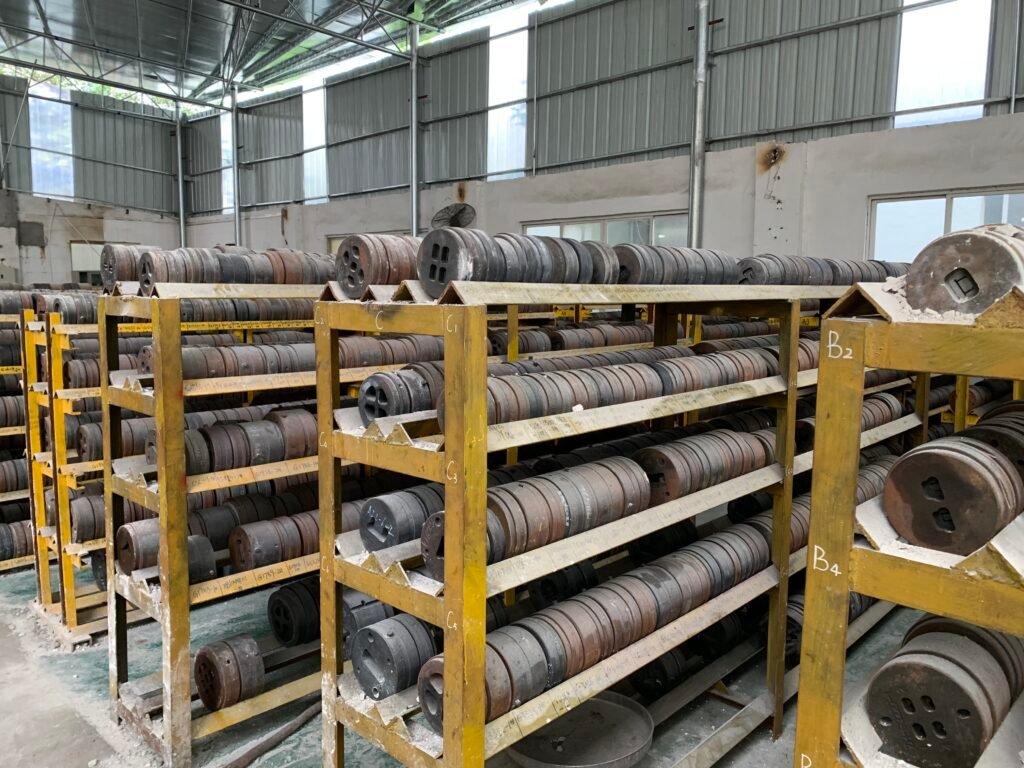

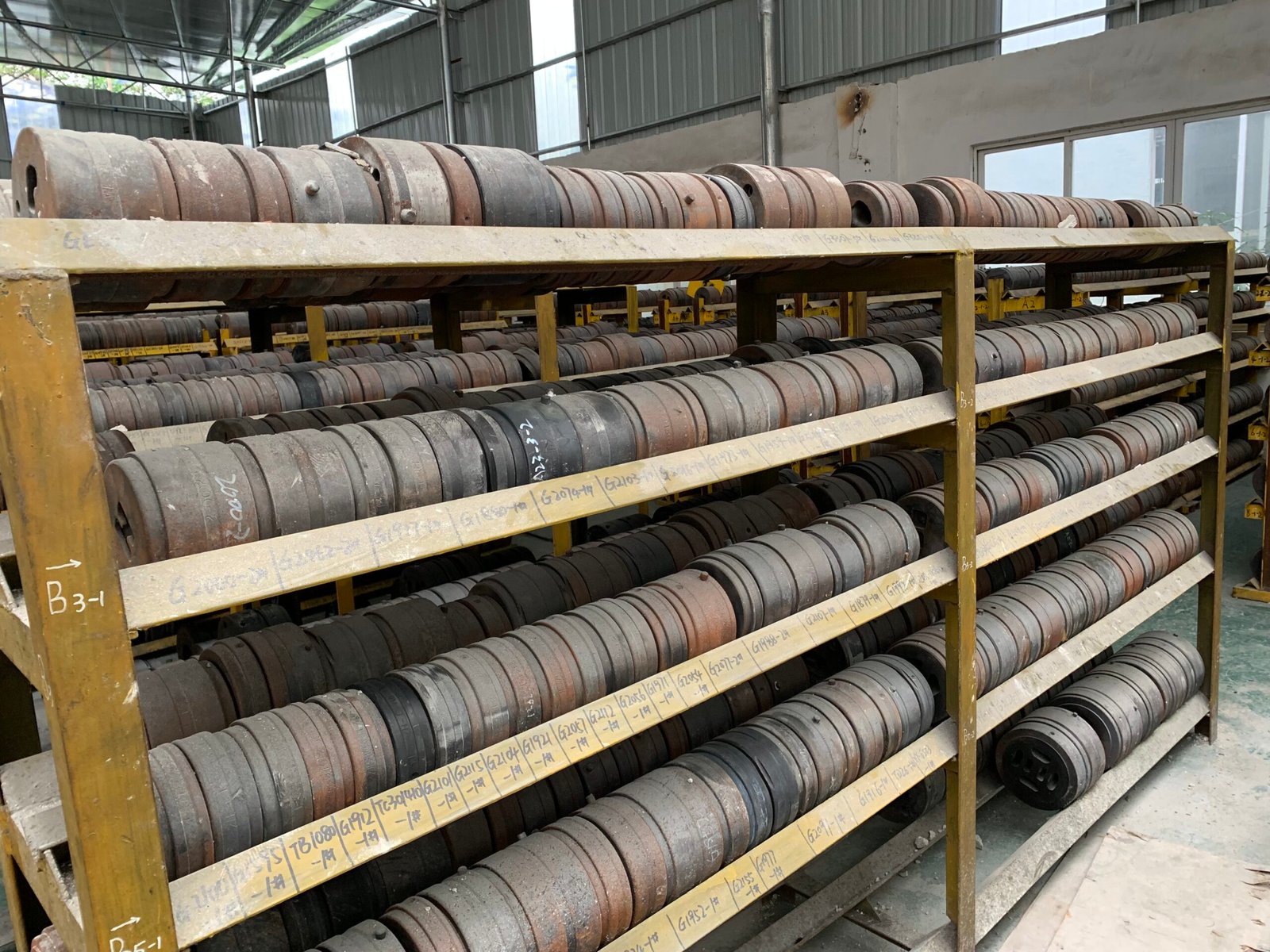

A high-tier manufacturer tracks every tool with a dedicated die maintenance log, recording total tonnage extruded, nitriding dates, and total re-nitriding cycles.
Checklist for Procurement and Design Engineers
When auditing an aluminum extrusion supplier, skip the generic quality questionnaires and ask these four targeted technical questions to evaluate their tooling discipline:
- “Which steel mill supplied the die steel, and what is the processing grade?”
- Red Flag: “It’s standard H13.” (Indicates they buy cheap, commodity tooling from local brokers).
- Green Light: “We specify Electroslag Remelted (ESR) H13 from Fushun Special Steel or genuine ASSAB 8407.”
- “What is your target extrusion tonnage before a die is pulled for maintenance?”
- Red Flag: “We run it until the surface looks bad or the dimensions drift.”
- Green Light: “For a standard 6063-T5 architectural profile, we pull and inspect the tool every 50 to 80 tons for scheduled maintenance and re-nitriding.”
- “Can we review the die maintenance log for a currently active profile?”
- Red Flag: The factory doesn’t maintain tool logs, or keeps them informally on paper shop traveler notes.
- Green Light: The factory provides a digital log tracking the tool’s exact historical tonnage, dimensional wear trends, nitriding frequencies, and total die life.
- “How do you explicitly guarantee that flat decorative surfaces won’t display shadow marks after anodizing?”
- Red Flag: “Anodizing variations are normal industry standards.”
- Green Light: “We design balanced bearing lengths and incorporate specialized deflection plates to ensure completely uniform metal deformation and grain size across all highly visible faces.”
The Bottom Line
A premium die can cost 30% to 50% more upfront. However, over the lifespan of a product run, it consistently delivers a lower total cost per kilogram. It yields fewer rejected profiles, eliminates costly press downtime for emergency tool changes, ensures rock-solid wall thickness tolerances, and produces a pristine cosmetic surface finish out of the gate.
The die is the profile. Every line, every tolerance drift, and every cosmetic defect begins right there in the tool. When a factory invests heavily in premium steel, intelligent die design, and meticulous toolroom maintenance, the press takes care of itself—and your production line gets perfect parts every single time.
