Aluminum Profiles for Tents, Marquees, and Folding Frame Structures

If your tent beams bend after one windy season, your bolt holes don’t line up without a file on-site, or your vibrant red powder coat fades to chalky pink by August—those aren’t “tent problems.” Those are extrusion supplier problems.Let’s fix them.

We manufacture the aluminum structural skeleton inside modern shelters:

• Round tubes for heavy-duty pop-up canopies.

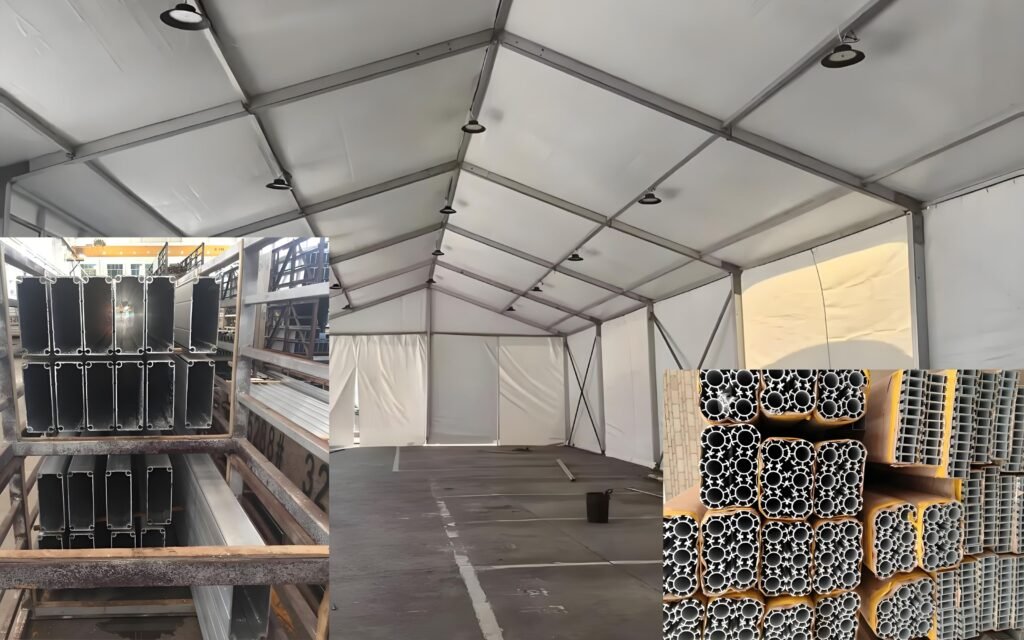

• Rectangular beams for clear-span event marquees.
• Oval poles for folding festival tents.

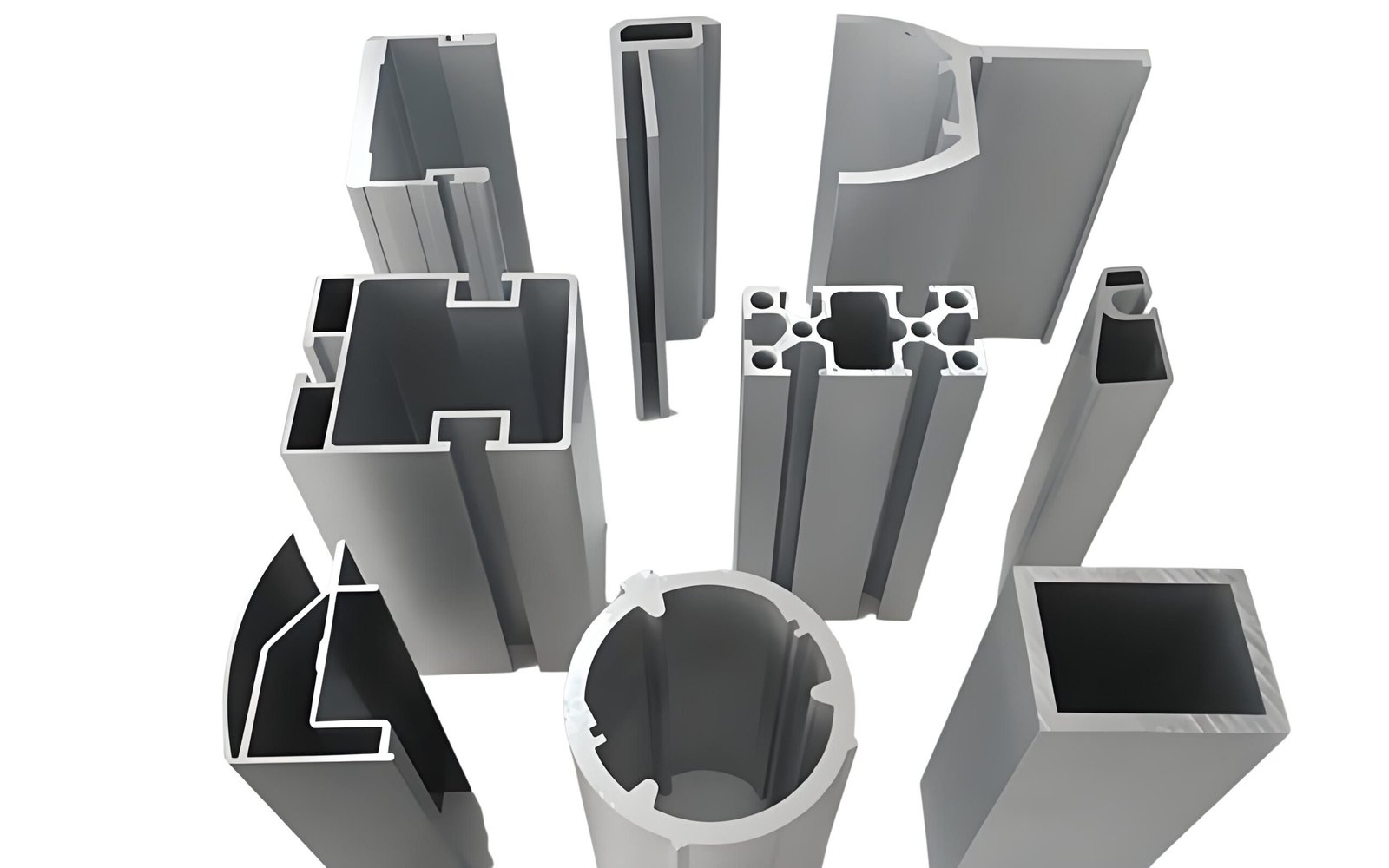

• Custom engineered profiles featuring integrated hinge bosses, sliding tracks, and locking channels for military and rapid-deployment relief shelters.

The Reality of Structural Tent Engineering: Tent aluminum isn’t passive architectural cladding. It gets repeatedly erected, torn down, packed into trailers, and dragged across fields. It bakes in direct UV radiation for months at a time and withstands severe dynamic wind loads that yank on every single bolted joint. The profiles you specify must be straight, strong, and punched with absolute precision—because when a two-person crew is assembling a 10-meter marquee in a remote field, they don’t carry a drill press.

We extrude tent profiles directly to your custom CAD design, precision cut them to exact lengths, CNC-drill every mounting hole, apply super-durable outdoor coatings, and ship them as fully labeled, site-ready assembly kits.

Structural & Metallurgical Solutions for Tent Manufacturers

1. Beams and Poles That Bend Under Load

The Problem

A customer manufacturing large event marquees reached out after a brutal spring storm season. Their 8-meter roof ridge beams—extruded from standard 6063-T5 rectangular tubing—had taken a permanent structural set. The roof line sagged, water pooled on the fabric, and clients complained that the rental stock looked unsafe.

The Solution

For any clear-span marquee exceeding 6 meters, or any temporary structure engineered for year-round snow loads, we default to 6061-T6 alloy.

Yield Strength Increase: 6061-T6 (≈240 MPa) vs. 6063-T5 (≈160 MPa)⟹+50% Strength

For a given beam depth, this higher yield strength dramatically reduces elastic deflection under wind loads. Alternatively, it allows design engineers to specify a slimmer, lower-profile beam while maintaining required structural stiffness, saving transport weight and lowering freight costs.

Before cutting dies or extruding billets, our engineering team verifies your profile’s section modulus (Z) and second moment of area (I) against your target span, local wind loading codes, and regional snow specs. If calculations show marginal safety factors, we suggest targeted profile optimizations before tooling up:

• Localized wall thickening at high-stress bending zones.
• Internal structural webbing to prevent cross-sectional buckling.
• Upgrading the alloy specification from 6063-T5 to 6061-T6.

2. Bolt Holes That Fail to Align on the Field

The Problem

Tent frames are intricate structural assemblies of beams, rafters, corner nodes, and hinges. A typical marquee side-wall frame can have dozens of bolt holes that must register perfectly with matching connectors. If those holes are hand-drilled with jigs or marked freehand, positional tolerances drift. Field crews are forced to enlarge the holes with round files or cordless drills. This creates sloppy joints, causes the tent frame to rattle violently in wind, and leads to rapid bolt shear wear.

The Solution

We CNC-drill every mounting hole from a single, absolute reference datum across the profile.

If you use standardized cast aluminum nodes or stamped steel connectors, we can match-drill test samples at our facility to guarantee a precise fit—not “hammer-it-in” tight, but “slides in with a smooth, snug push” right. Every component is laser-engraved or inkjet-labeled with its exact part number and alignment index marks.

3. Hinges and Folding Joints That Wallow Out

The Problem

Folding canopies, pop-up tents, and scissor-frame shelters rely on mechanical pivot points. Stainless steel bolts or clevis pins run directly through aluminum walls. As the tent opens and closes throughout a busy event season, the softer aluminum hole wallows out into an oval shape. The frame loses structural rigidity and wobbles.

The Solution

We solve pivot wear at the extrusion design stage through three distinct methods:

1. Localized Wall Thickening: We add extra aluminum wall thickness exclusively around the hinge boss zone rather than increasing the weight of the entire profile.
2. Precision Hole Reaming: We ream pin holes to an H8 precision tolerance. Unlike a standard drilled hole which leaves micro-ridges, a reamed surface is mirror-smooth, drastically reducing initial mechanical wear.
3. Pressed Steel/Nylon Bushings: For heavy-duty commercial hire stock or military shelters, we factory-press stainless steel or self-lubricating nylon bushings directly into the reamed holes. The steel pin rides on the hard bushing rather than the aluminum parent metal.

4. Powder Coatings That Fade, Chalk, or Peel

The Problem

Tent frames sit in high-UV environments for weeks at a time. Standard interior-grade polyester powder coatings break down quickly under intense sunlight. The resin chalks, leaving white chemical residue on hands and fabric, while bright brand colors fade rapidly.

The Solution

We specify architectural-grade, weather-resistant coating systems designed specifically for harsh outdoor exposure:

Crucial Pretreatment: Prior to powder application, every profile undergoes a multi-stage chrome-free conversion coating. This chemical pretreatment layer stops filiform corrosion—the creeping, spiderweb-like white oxidation that spreads beneath paint when a profile gets scratched in the field

Customized Supply Solutions by Tent Type

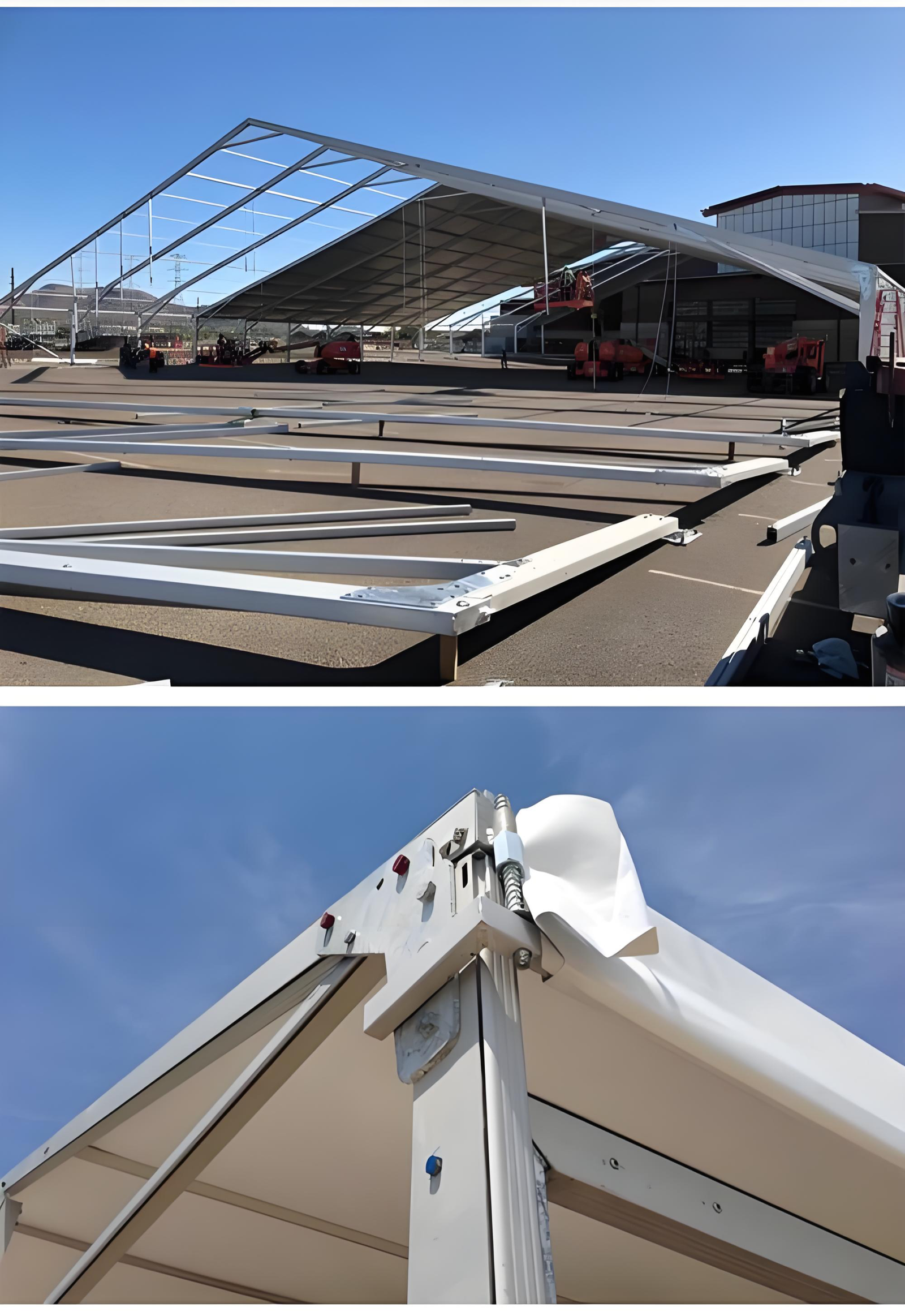

• Clear-Span Event Marquees: Large multi-channel rectangular main beams (120×68 mm, 200×120 mm), round eave columns, base plates. Supplied in 6061-T6, pre-drilled with keder fabric slots.
• Commercial Pop-Up Canopies: Hexagonal or square leg profiles (40 mm, 50 mm), scissor truss bars. Thin-wall 6063-T5 with tight tolerances for smooth telescopic sliding.
• Rapid-Relief & Military Shelters: Heavy-wall round tubes, reinforced structural connector nodes. High-strength 6061-T6 finished with CARC-compatible or PVDF ultra-durable coatings.
• Glamping Domes & Eco-Resorts: Architectural oval profiles, curved structural ribs, wood-grain transfer finishes combining organic aesthetics with structural aluminum longevity.

Frequently Asked Questions

Q1: We need clear-span marquee beams that will stay erected year-round in high-wind regions. Can you guarantee structural performance?

We review your profile cross-section against your target span, wind loads (e.g., up to 100 km/h), and regional snow loads. If calculations show a standard 6063-T5 profile will deflect excessively, we will recommend upgrading to 6061-T6, increasing internal wall thickness at stress points, or deepening the profile section.

Q2: Can you manufacture telescopic tent legs where one profile slides smoothly inside another?

Yes. We maintain tight dimensional tolerances on both inner and outer extrusion profiles to ensure a smooth sliding fit without excess rattle or binding. We can also integrate dedicated nylon glide inserts into the profile channel to eliminate metal-on-metal friction and scratch marks.

Q3: We are developing a completely new shelter design and don’t have final extrusion CAD drawings. Can you assist?

Send us your preliminary sketch, key target dimensions, expected load requirements, and how you intend to connect the frame nodes. Our structural design engineers will draft a production-ready aluminum extrusion profile, recommend the correct alloy and temper, and optimize the cross-section for cost-effective manufacturing at no extra design charge.
