Aluminum Extrusions for Roof Racks and Tent Frames—Made to Your Drawings, Built for the Outdoors

Built to Your Engineering Drawings. Proven for Extreme Outdoor Exposure.

Your crossbars sit under direct UV light 365 days a year. Your tent frames get folded, rained on, yanked, and shoved back into gear bags.

When an anodized coating fades, a sliding mechanism jams, or mounting holes miss by a millimeter, end customers blame the brand. But the failure didn’t start in their driveway—it started at the extrusion press.

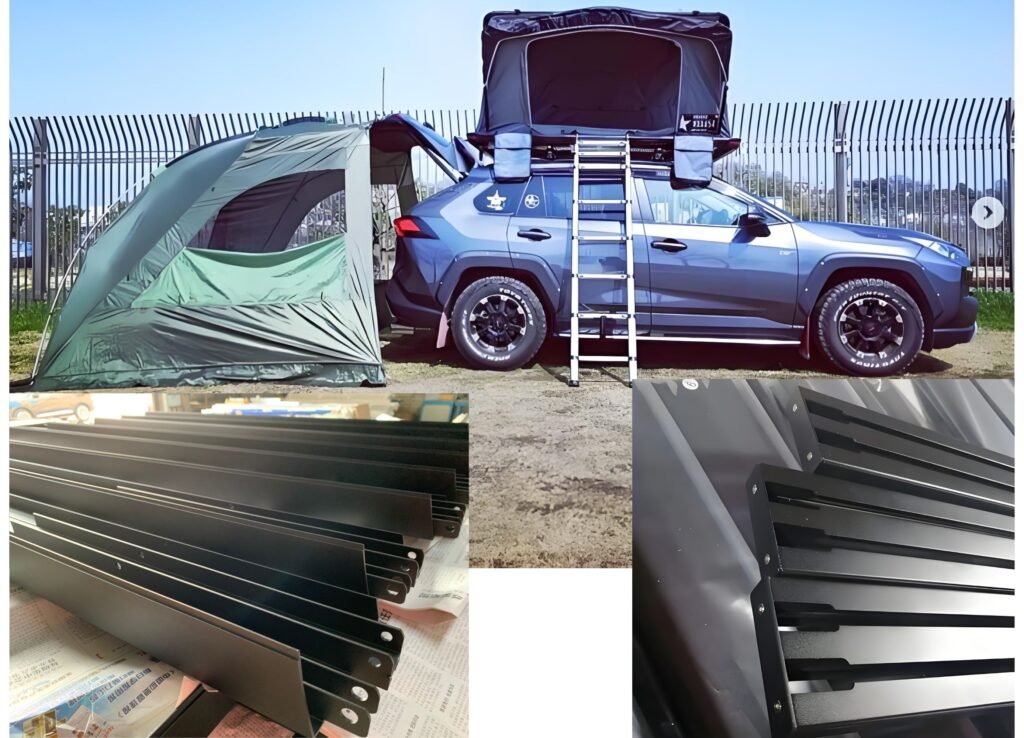

We extrude, machine, and finish custom aluminum profiles engineered specifically for automotive roof racks and outdoor camping systems. We don’t push “close-enough” standard catalog shapes. You supply the CAD drawings or physical samples; we build the die, execute post-extrusion CNC machining, apply outdoor-grade surface treatments, and ship finished components.

What the Outdoors Does to Aluminum—and What We Do About It

Sun

A roof rack crossbar in direct summer sun can hit 70 or 80°C at the surface. The UV exposure never stops. Organic dyes and cheap resins break down under that kind of punishment.

Black anodized profiles that looked sharp out of the box start to look reddish or greyish after two or three years. The dye fades. Powder coated surfaces—if the wrong powder was used—chalk and lose gloss. You run a finger across the surface and it comes away white.

We don’t use indoor-grade powder on outdoor parts. For roof racks and tent frames, it’s super-durable polyester powder rated for 1000+ hours of xenon arc weathering, or PVDF fluorocarbon if the rack is permanently mounted and the owner expects it to look the same in year ten as it did on day one. For anodized finishes, we go to AA15 or AA20 thickness, not AA10, and we seal with high-temperature nickel salt, not a quick cold dip. The sealing is what stops the oxide pores from absorbing moisture and contaminants. Cheap sealing fails quietly. You don’t see the problem until the white spots appear.

Rain and Standing Water

Rainwater itself isn’t the enemy. What it leaves behind is. Water pools in T-slot channels, inside tube ends, around bolt holes. It dries. It pools again. Each cycle leaves a trace of whatever was dissolved in it—road salt, dust, pollution. Over months, those traces concentrate and begin to attack the anodized layer from the inside of the pores.

For profiles with closed cavities or upward-facing channels, we can incorporate drainage slots or weep holes at the extrusion stage, positioned where water naturally collects. If your drawing already includes these, we machine them precisely. If it doesn’t, and we see a water trap, we’ll flag it during die review. You decide whether to add drainage.

The pretreatment step—chrome or chrome-free passivation before anodizing or powder coating—is where we don’t cut corners. It adds a few cents per kilo and takes time in the line. It also stops filiform corrosion: those thin white worms that creep under a coating from a tiny scratch. Once that starts, the coating is on borrowed time. Pretreatment stops it before it begins.

Thermal Cycling

A 1.5-meter roof rack crossbar expands by about 2 mm between a cold morning and a hot afternoon. The aluminum moves. The coating has to move with it.

Anodizing is part of the aluminum—it expands and contracts at the same rate. It doesn’t crack. Powder coating and PVDF rely on adhesion. If the pretreatment was done right, the coating stretches with the metal. If the pretreatment was skipped or rushed, the bond fails at the interface after enough cycles, and the coating lifts. We’ve seen it happen on racks where the coating peeled off in sheets, and underneath the aluminum was shiny and untouched. That’s not a coating failure. That’s a pretreatment failure that took three years to reveal itself.

Why Some Racks and Tents Feel “Cheap”—The Tolerance Problems Behind the Complaints

Read enough reviews on automotive forums and outdoor gear sites, and the same complaints keep coming up. These aren’t design problems. They’re manufacturing problems that live in the extrusion and machining stages.

“The crossbar adjuster is so stiff I had to kick it into position.”

A telescopic or sliding mechanism needs a controlled gap between the inner and outer profiles. Too tight, and friction makes the adjustment a workout. Too loose, and the whole assembly rattles and feels flimsy.

The gap is determined by the dimensional accuracy of both tubes at their mating surfaces. You can’t hit a consistent 0.2 mm clearance if the tube dimensions wander by 0.3 mm across a production batch.

We CNC-machine the sliding surfaces on telescopic components after extrusion. The extruded profile gets a clean-up pass that brings the critical diameter or face into tolerance. If your drawing calls for a specific clearance range, we hit it and verify it. If it doesn’t specify, we’ll ask. A tent pole that slides smoothly and a roof rack crossbar that adjusts with one hand are both the result of a tolerance decision someone made before production started.

“The mounting holes didn’t line up. I had to drill new ones and now the finish is ruined.”

Holes that don’t align across mating parts is a drilling problem, not a design problem. Somebody drilled from a hand-marked layout or a worn drill jig, and the error stacked up.

We drill every hole on a CNC machining center from a single datum per part. Position tolerance is ±0.15 mm across the batch. For a roof rack system where the crossbar, rail, and foot bracket all need to bolt together, we machine all the parts in the same production window using the same reference setup. The holes line up because they were programmed to line up, not because an operator eyeballed them.

We also spot-check assembly before packing. Grab a crossbar, a rail, and a foot bracket from the batch. Bolt them together with the specified fasteners. If anything binds or misaligns, we find it in our factory, not in the customer’s driveway.

“One side of the rack sits lower than the other. The crossbars aren’t parallel.”

This is straightness. A crossbar that left the extrusion plant with a 3 mm bow will never mount flat. The customer tightens it down, the curve flattens under bolt tension, but now the whole assembly is under stress. Over time, the stress relaxes and the rack shifts. Or the bow stays visible, and the car looks like it’s wearing a crooked roof rack.

We tension-straighten every profile after extrusion. Straightness is held to 0.5 mm per meter or better. If the profile has a designed curve—some crossbars do, for aerodynamic or load reasons—we straighten to the specified arc, not to a flat line. The drawing dictates the shape. Our job is to match it and keep it consistent across the order.

“The black finish on my roof rails is now patchy grey after two summers.”

Black anodized aluminum in full sun fades because the organic dye used in conventional black anodizing breaks down under UV. It goes reddish first, then grey, then patchy. The aluminum underneath is fine. The color is gone.

For black outdoor profiles that need to stay black, powder coating is the more durable choice. The pigment is inorganic, baked into a resin that’s formulated for outdoor exposure. If the design requires the metallic look of anodizing, electrolytic coloring—where the color comes from metal ions deposited in the oxide pores, not organic dye—holds up far better than dyed anodizing. The color range is narrower (bronze, champagne, black), but it won’t fade.

What We Make

All profiles extruded to customer drawings. No standard catalog. No “we can get close.”

Surface Finishes for Outdoor Exposure

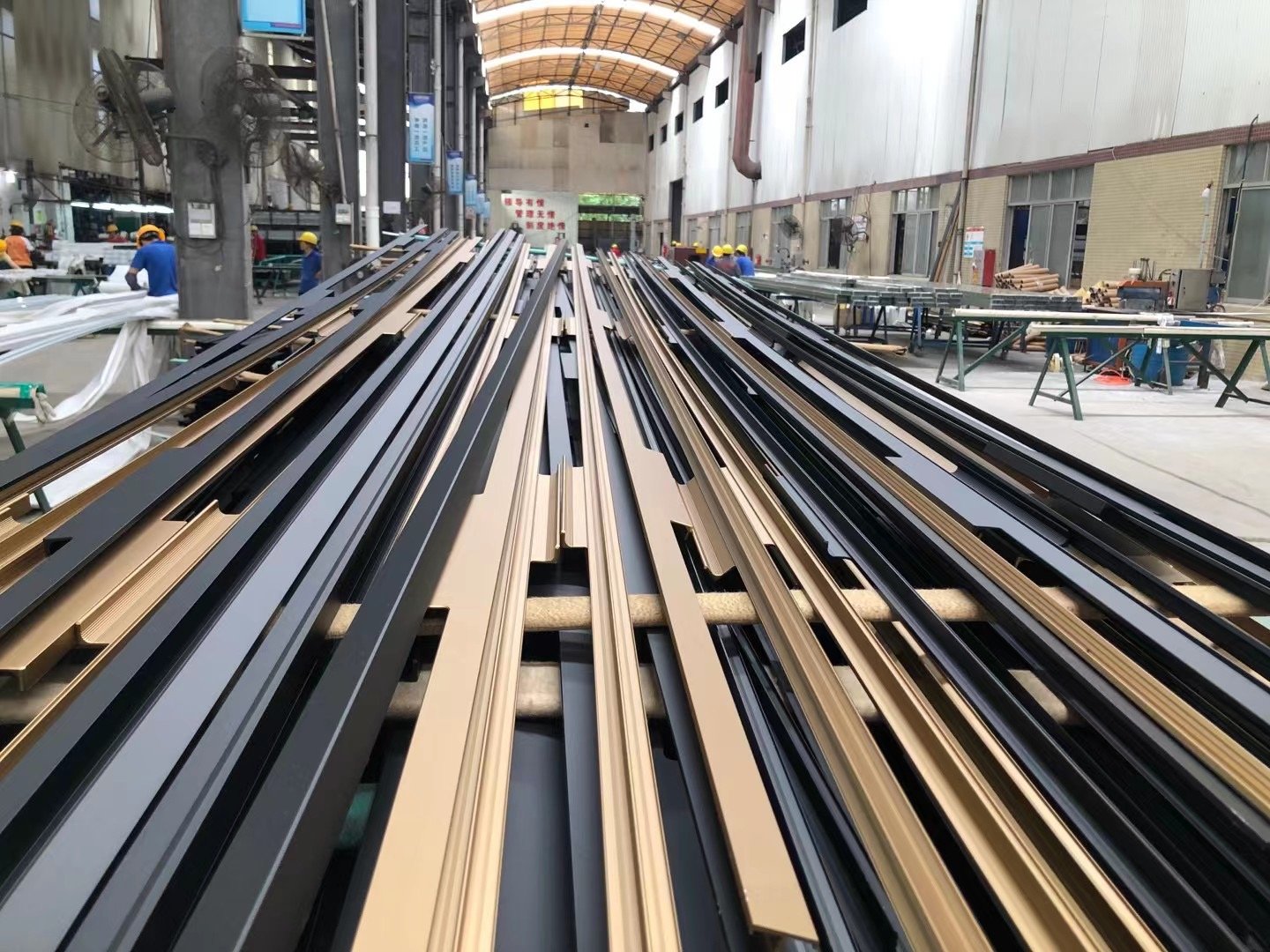

All finishing done in-house. All profiles for one order run through the same tank or booth, same shift, same cure cycle. The roof rails match the crossbars match the foot covers.

FAQ

Q1: Our current roof rack crossbars have a telescopic adjustment. Some units slide smoothly, some are too tight, some have play. Why does it vary?
A: Because the gap between the inner and outer profiles isn’t being controlled consistently in production. Extruded surfaces alone, without post-machining, can vary enough to cause exactly what you’re describing. We CNC-machine the sliding surfaces to hit a consistent clearance. If your drawing specifies a 0.15 mm diametral gap, we hold it across the batch. You get the same slide force on every unit.

Q2: We want black roof rails that don’t turn grey after a few years. What’s the right finish?
A: Conventional black anodizing uses organic dye that UV destroys. For a black finish that stays black, use super-durable polyester powder coat in matte or satin black. It’s the standard for automotive exterior trim for a reason. If the design absolutely requires the metallic depth of anodizing, ask for electrolytically colored anodizing, not dyed. The black comes from cobalt sulfide deposited in the oxide pores—inorganic, UV-stable.

Q3: We’re making a rooftop tent frame. All the aluminum parts—tubes, hinges, brackets—need to be the same color. Can you do that?
A: Yes. We extrude all the profiles for one tent system from the same billet batch, then anodize or powder coat them together in one production run. The tubes, the hinge bodies, the mounting brackets—all in the same tank or booth at the same time. One color across the whole frame.

Q4: We need tent poles with a hinge joint. The pin hole wears out after a season of use. How do you prevent that?
A: We ream pin holes to H8 tolerance instead of just drilling them. A reamed hole is smoother and holds its size better under repeated pivoting. For rental-grade or heavy-use tent frames, we can press a stainless steel bushing into the hole. The pin rides on hardened steel, not aluminum. The aluminum body just holds the bushing.

Q5: We don’t want to deal with cutting and drilling. Can you ship pre-machined parts that are ready to assemble?
A: That’s how most of our customers in these industries order. You send your BOM or assembly drawing. We cut every profile to length, drill all the holes, ream the pin bores, tap the threads, and label each piece. The pallet arrives, your team bolts or pins it together. No saw, no drill press, no scrap.

Q6: Can you bend aluminum tubes for roof racks or tent frames?
A: Yes. We can rotary-draw bend or roll-bend tubes to your specified radius. Keep in mind that bending can affect the surface finish in the bend zone—powder coating or anodizing after bending is the cleanest approach. If you need pre-finished tube bent without damaging the coating, that’s possible within certain radius limits. Send the bend drawing and we’ll assess it.

Q7: What’s your minimum order?
A: New die: 500 kg per profile. Existing die: 200 kg can work for a trial or small batch. A roof rack system with crossbars, rails, and foot bases usually meets the minimum without trouble. Tent frame kits often do too, since a full set involves multiple profiles.
